產品展示當前位置：首頁 > 產品展示
GFEVT500-10R 高速熔斷器 10A-60A 450V500Vdc

本系列直流熔斷器適用于額定直流電壓500V（450V)，額定分?jǐn)啵?0KA，作為車載線路系統電動壓縮機，DC轉換器及輔助電路，逆變器，直流電源，儀器儀表，基站的綜合保護，同時具有強限流能力、高分?jǐn)嗄芰Α⒍搪贩謹嗨俣瓤斓忍攸c(diǎn)，以及可耐受溫度沖擊、機械振動沖擊、電流沖擊、化學負荷等，該系列產品符合ISO 8820 和JASO D622以及GB/T31465中的規定



[附件: Download]

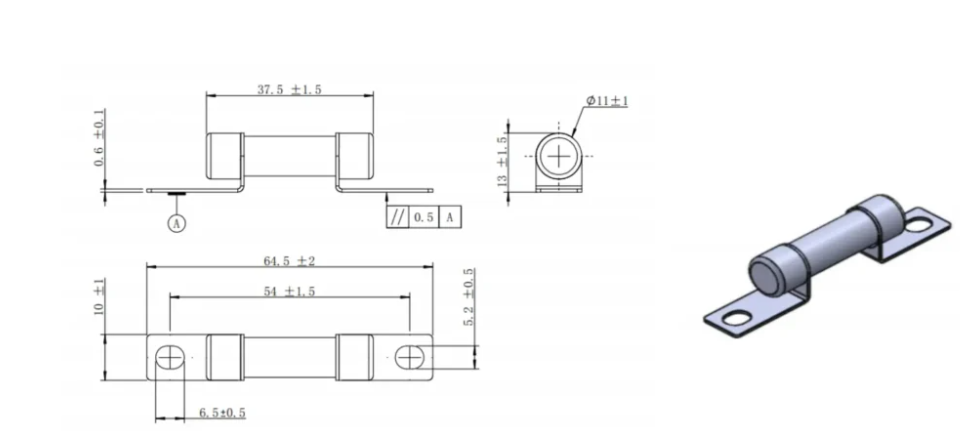

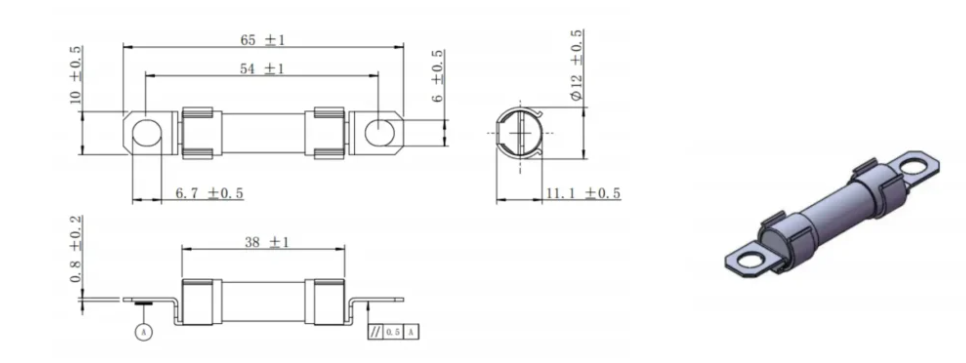

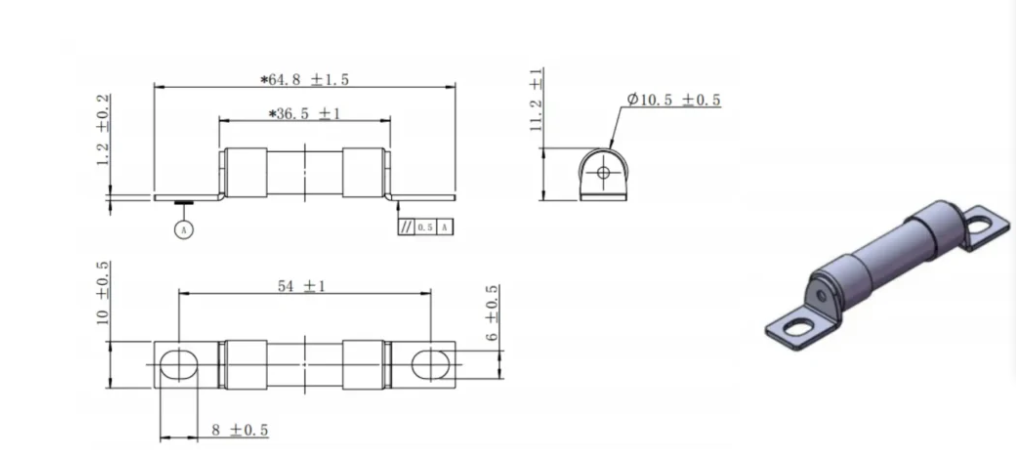

Dimensions (mm)

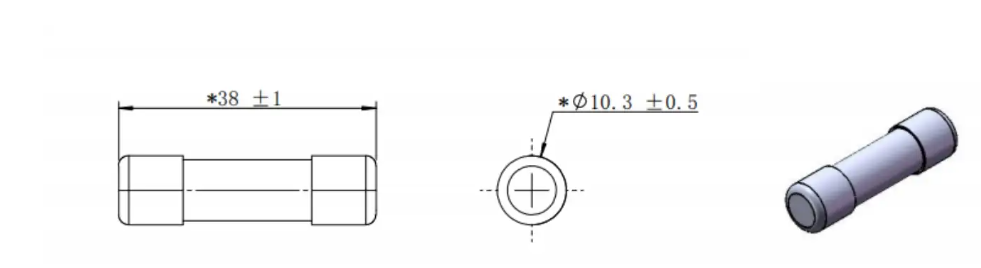

FerrulexxA-10R








Axial bolt-on 1xxAP-10R


Surface MountxxH-10R


Flush bolt-onxxC-10R

Description



  • Low watt losses
  • Designed for DC applications
  • Excellent DC performance

Standards & Approvals

  • Refer to JASO-D622 / ISO8820.8 / GB31465.6
  • Manufactured under an IATF16949 quality system for compliance with automotive requirements
  • Reach declaration available upon request
  • RoHS compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
  • Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
  • Can be applied in parallel to realize greater ampacity within sizing guidelines
  • Excellent resistance to voltaic impingement and environmental temperature variations
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Fuse Amps Average @ 20 kA/500 Vdc Power Loss（w）
I2t Melting I2t Clearing 100%
10 33.3 174.6 2.0
15 81.6 431.1 2.3
20 172.5 912.6 3.0
25 278.9 1504.0 3.8
30 401.2 2166.9 4.5
32 425.6 2351.5 4.8
40 721.6 4311.5 6.0
50 1036.0 5184.0 8.0
60 2098.0 6480.0 10.0




Applications

  • Battery pack protection
  • EV/HEV applications (pure electric and hybrid vehicles)
  • Superior cycling capability

Available Fuse Catalog No.

Catalog no./terminals
Ferrule Axial bolt-on *1 Flush bolt-on Surface Mount Amps
10A-10R 10AP-10R 10C-10R 10H-10R 10
15A-10R 15AP-10R 15C-10R 15H-10R 15
20A-10R 20AP-10R 20C-10R 20H-10R 20
25A-10R 25AP-10R 25C-10R 25H-10R 25
30A-10R 30AP-10R 30C-10R 30H-10R 30
32A-10R 32AP-10R 32C-10R 32H-10R 32
40A-10R 40AP-10R 40C-10R 40H-10R 40
50A-10R 50AP-10R 50C-10R 50H-10R 50
60A-10R 60AP-10R 60C-10R 60H-10R 60
