2.Product introduction

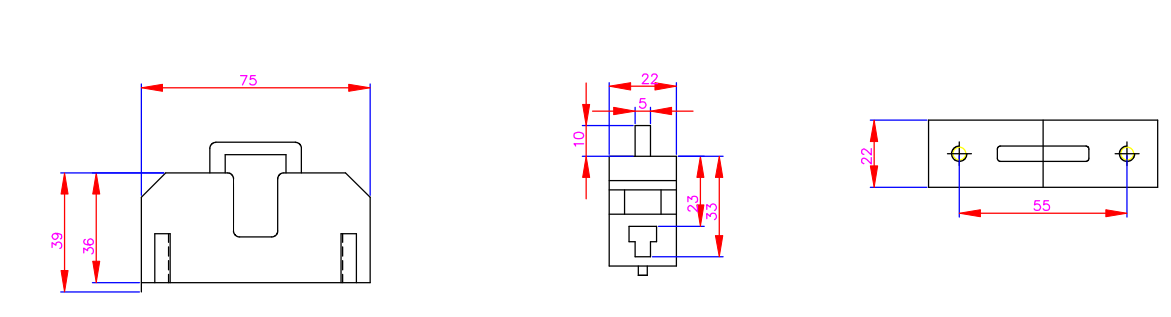

1. Product model: H10MF fuse holder

2. Product application: 10x38 fuse (GFEFUSE^® H10H matching fuse)

3. Rated voltage: 1000 VDC

4. Rated current: up to 50A (bolt), 30A (clamp)

5. Dielectric strength: > 1200 V

6. Torque: 2.3 n · m (20 in LBS)

7. Wire range: 14-7 AWG (1.6-8.4 2)

8. Clip / terminal: tinned copper alloy (M5 screw)

9. Screw and external pressing plate: galvanized steel

10. Base: thermoplastic

11. Working temperature: up to 125 ℃

12. Material Flammability: UL 94 V-0

13.Base: PBT

14.Top cover: PC
