GFEVT500-R18高速熔斷器 (10A-100A)500Vac/dc

[附件: Download]

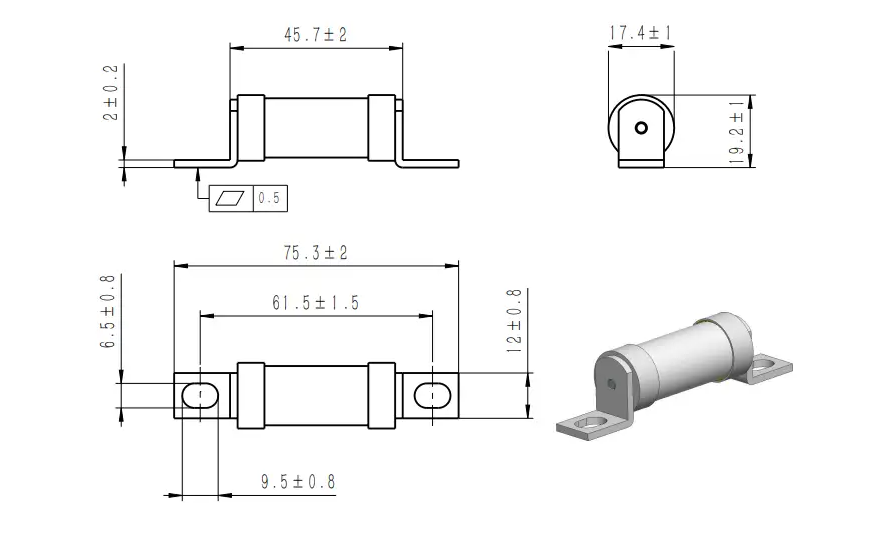

Dimensions (mm)

Description

Design for DC Applications
Excellent DC performance
Superior cycling capability
Low watt losses

Standards & Approvals

References:
- UL 248.1 / UL 248.13
- IEC 60269.1 / IEC 60269.4
- GB 13539.1 / GB 13539.4
- JASO D622
Manufacturing Compliance:
- IATF16949 Quality System for automotive requirements
Certifications:
- Reach declaration available upon request
- CE
- RoHS compliant

Features & Benefits

Higher voltage rating ensures overall system efficiency with smaller, more economical conductors while meeting high-voltage needs
Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
Can be applied in parallel to realize greater ampacity within sizing guidelines
Excellent resistance to voltaic impingement and environmental temperature variations
Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No.	Fuse Amps	Average @50KA/500Vdc		Power Loss (W)		Approvals
Part No.	Fuse Amps	A2s Melting	A2t Clearing	80%	100%
GFEVT500-10A-18R	10A	7	13	2	3	○ Pending
GFEVT500-16A-18R	16A	7	51	7	9	○ Pending
GFEVT500-20A-18R	20A	32	231	6	7	○ Pending
GFEVT500-25A-18R	25A	32	263	6	7	○ Pending
GFEVT500-32A-18R	32A	34	316	7	9	○ Pending
GFEVT500-35A-18R	35A	35	345	7	9	○ Pending
GFEVT500-40A-18R	40A	108	460	7	9	○ Pending
GFEVT500-45A-18R	45A	114	518	9	11	○ Pending
GFEVT500-50A-18R	50A	126	690	9	11	○ Pending
GFEVT500-63A-18R	63A	149	900	10	12	○ Pending
GFEVT500-70A-18R	70A	231	1140	14	18	○ Pending
GFEVT500-80A-18R	80A	275	1800	16	20	○ Pending
GFEVT500-90A-18R	90A	418	2520	16	20	○ Pending
GFEVT500-100A-18R	100A	517	3360	19	24	○ Pending

DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃；
