GFEVT1000-N-59E高速熔斷器100A-800A 1000Vdc



Dimensions (mm)

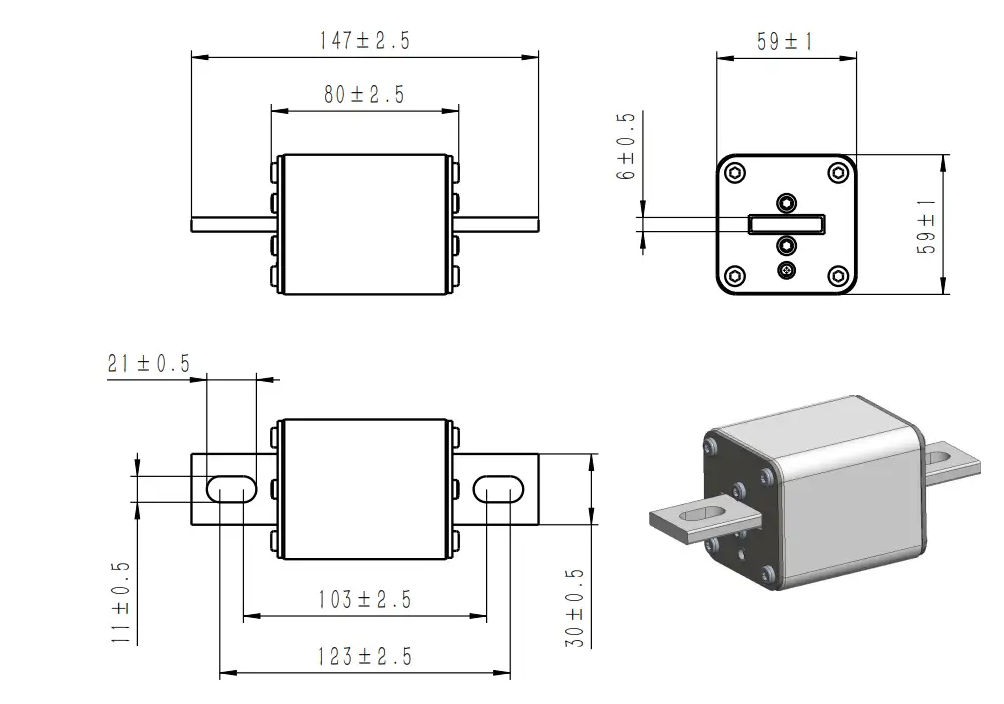

Bolted xxxBN-59E

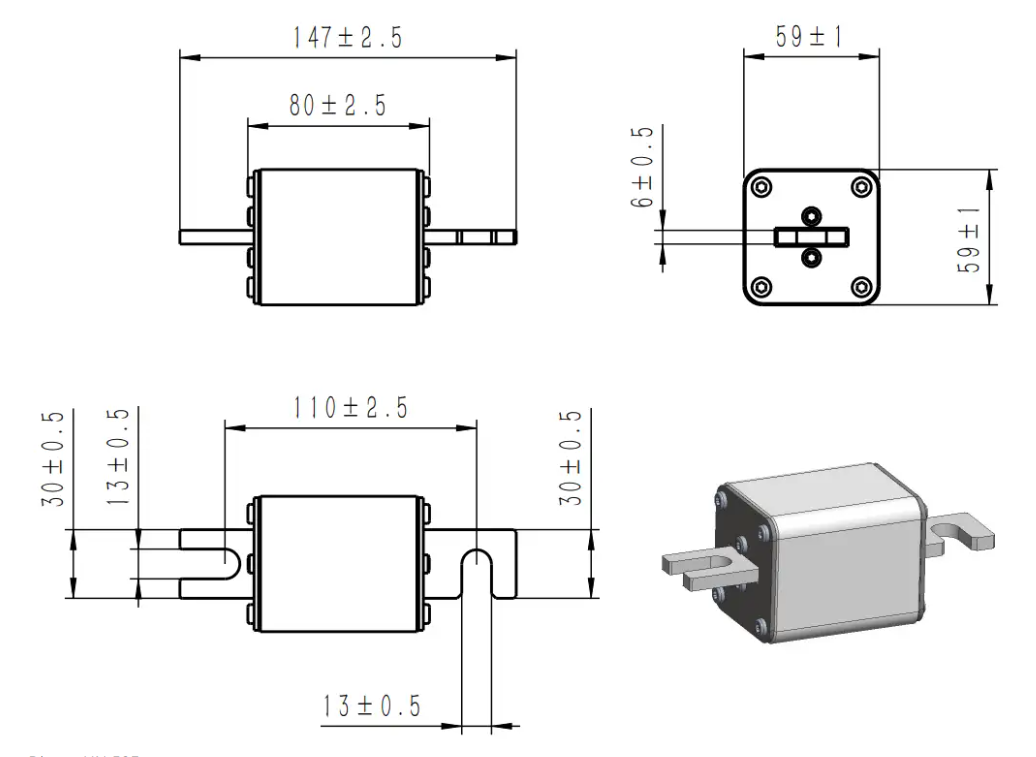

Din xxxUN-59E

Description



  • Design For DC Applications
  • Excellent DC Performance
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
 Bolted GFEVT1000-100BN-59E 100A 2# 1,320 8,680 75 ● ●
GFEVT1000-125BN-59E 125A 2# 1,880 12,400 80 ● ●
GFEVT1000-160BN-59E 160A 2# 2,690 17,710 85 ● ●
GFEVT1000-200BN-59E 200A 2# 3,840 25,300 90 ● ●
GFEVT1000-250BN-59E 250A 2# 5,490 36,150 98 ● ●
GFEVT1000-275BN-59E 275A 2# 7,900 52,170 105 ● ●
GFEVT1000-315BN-59E 315A 2# 10,900 72,850 113 ● ●
GFEVT1000-350BN-59E 350A 2# 13,900 91,650 120 ● ●
GFEVT1000-400BN-59E 400A 2# 19,450 131,600 128 ● ●
GFEVT1000-450BN-59E 450A 2# 30,950 192,700 135 ○ ○
GFEVT1000-500BN-59E 500A 2# 43,680 267,900 143 ○ ○
GFEVT1000-550BN-59E 550A 2# 56,420 347,800 150 ○ ○
GFEVT1000-630BN-59E 630A 2# 104,650 540,500 180 ○ ○
GFEVT1000-700BN-59E 700A 2# 145,930 739,350 188 ○ ○
GFEVT1000-800BN-59E 800A 2# 223,440 1,160,000 195 ○ ○
Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% UL TUV
Din GFEVT1000-100UN-59E 100A 2# 1,320 8,680 75 ● ●
GFEVT1000-125UN-59E 125A 2# 1,880 12,400 80 ● ●
GFEVT1000-160UN -59E 160A 2# 2,690 17,710 85 ● ●
GFEVT1000-200UN -59E 200A 2# 3,840 25,300 90 ● ●
GFEVT1000-250UN-59E 250A 2# 5,490 36,150 98 ● ●
GFEVT1000-275UN-59E 275A 2# 7,900 52,170 105 ● ●
GFEVT1000-315UN-59E 315A 2# 10,900 72,850 113 ● ●
GFEVT1000-350UN-59E 350A 2# 13,900 91,650 120 ● ●
GFEVT1000-400UN-59E 400A 2# 19,450 131,600 128 ● ●
GFEVT1000-450UN-59E 450A 2# 30,950 192,700 135 ○ ○
GFEVT1000-500UN-59E 500A 2# 43,680 267,900 143 ○ ○
GFEVT1000-550UN-59E 550A 2# 56,420 347,800 150 ○ ○
GFEVT1000-630UN-59E 630A 2# 104,650 540,500 180 ○ ○
GFEVT1000-700UN-59E 700A 2# 145,930 739,350 188 ○ ○
GFEVT1000-800UN-59E 800A 2# 223,440 1,160,000 195 ○ ○
